ZM TYPE
작업자의 편의성과 제품의 내구성을 갖춘 명품 생산으로 환경친화적 제품을 생산

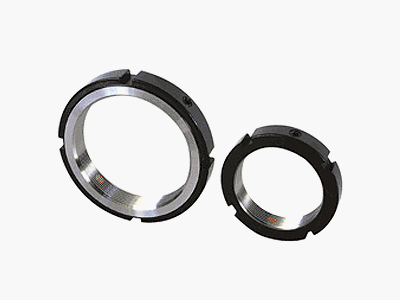

ZM TYPE
Features
- Material
- DIN C45, JIS S45C, KS SM45C
- Hardness
- HRC 20~25
- Nut Grade
- Precision class
- Squarness of Nut Face
- ⊥0.002~0.015
- 1. Keeps a good balance thanks to the equal interval fluting of lock pin and hook spanner slots.
- 2. Because improving the smoothness and flatness through lapping process it is fit for the shaft built up which requires a high fixing degree.

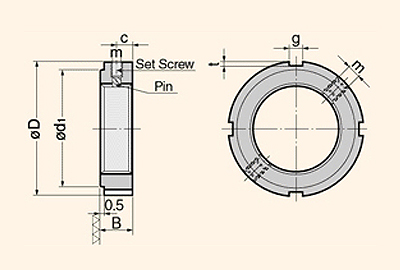

Dimensions(mm)
표를 좌,우로 드래그 해주세요.
| PART NO | THREAD & PITCH | Dimension |
Axial Load
(KN) |
Set Screw
(Nm) |
Weight
(g)
|
||||||
| øD | B | g | t | d1 | c | m | |||||
| ZM 8 | M 8 × 0.75 | 16 | 8 | 3 | 2 | 12 | 4 | M4 | 18 | 2 | 4 |
| ZM 10 | M 10 × 1 | 18 | 8 | 3 | 2 | 14 | 4 | M4 | 22 | 3.5 | 8 |
| ZM 12 | M 12 × 1 | 22 | 8 | 3 | 3 | 16 | 4 | M4 | 26 | 3.5 | 14 |
| ZM 15 | M 15 × 1 | 25 | 8 | 3 | 3 | 19 | 4 | M4 | 33 | 3.5 | 16 |
| ZM 17 | M 17 × 1 | 28 | 10 | 4 | 3 | 21 | 5 | M5 | 49 | 4.5 | 24 |
| ZM 20 | M 20 × 1 | 32 | 10 | 4 | 3 | 25 | 5 | M5 | 55 | 4.5 | 34 |
| ZM 25 | M 25 × 1.5 | 38 | 12 | 5 | 3 | 31 | 6 | M6 | 87 | 8 | 54 |
| ZM 30 | M 30 × 1.5 | 45 | 12 | 5 | 3 | 38 | 6 | M6 | 110 | 8 | 76 |
| ZM 35 | M 35 × 1.5 | 52 | 12 | 5 | 3 | 45 | 6 | M6 | 120 | 8 | 102 |
| ZM 40 | M 40 × 1.5 | 58 | 14 | 6 | 3 | 50 | 7 | M6 | 150 | 8 | 144 |
| ZM 45 | M 45 × 1.5 | 65 | 14 | 6 | 3 | 56 | 7 | M6 | 170 | 8 | 180 |
| ZM 50 | M 50 × 1.5 | 70 | 14 | 6 | 3 | 61 | 7 | M6 | 180 | 8 | 196 |
| ZM 55 | M 55 × 2 | 75 | 16 | 7 | 4 | 66 | 8 | M6 | 250 | 8 | 240 |
| ZM 60 | M 60 × 2 | 80 | 16 | 7 | 4 | 70 | 8 | M6 | 270 | 8 | 262 |
| ZM 65 | M 65 × 2 | 85 | 16 | 7 | 4 | 76 | 8 | M6 | 290 | 8 | 282 |
| ZM 70 | M 70 × 2 | 92 | 18 | 8 | 4 | 82 | 9 | M8 | 350 | 18 | 378 |
| ZM 75 | M 75 × 2 | 98 | 18 | 8 | 4 | 87 | 9 | M8 | 370 | 18 | 422 |
| ZM 80 | M 80 × 2 | 105 | 18 | 8 | 4 | 92 | 9 | M8 | 390 | 18 | 492 |
| ZM 85 | M 85 × 2 | 110 | 18 | 8 | 4 | 99 | 9 | M8 | 400 | 18 | 524 |
| ZM 90 | M 90 × 2 | 120 | 20 | 10 | 4 | 105 | 10 | M8 | 470 | 18 | 750 |
| ZM 95 | M 95 × 2 | 125 | 20 | 10 | 4 | 110 | 10 | M8 | 490 | 18 | 782 |
| ZM 100 | M 100 × 2 | 130 | 20 | 10 | 4 | 116 | 10 | M8 | 510 | 18 | 826 |
| ZM 105 | M 105 × 2 | 140 | 22 | 12 | 5 | 122 | 11 | M10 | 560 | 35 | 1108 |
| ZM 110 | M 110 × 2 | 145 | 22 | 12 | 5 | 129 | 11 | M10 | 600 | 35 | 1164 |
| ZM 120 | M 120 × 2 | 155 | 24 | 12 | 5 | 136 | 12 | M10 | 710 | 35 | 1378 |
| ZM 130 | M 130 × 2 | 165 | 24 | 12 | 5 | 145 | 12 | M10 | 760 | 35 | 1480 |
| ZM 140 | M 140 × 2 | 180 | 26 | 14 | 6 | 156 | 13 | M12 | 880 | 60 | 1958 |
| ZM 150 | M 150 × 2 | 195 | 26 | 14 | 6 | 167 | 13 | M12 | 930 | 60 | 2404 |
| ZM 160 | M 160 × 3 | 210 | 28 | 16 | 7 | 178 | 14 | M12 | 980 | 60 | 3080 |
| ZM 170 | M 170 × 3 | 220 | 28 | 16 | 7 | 189 | 14 | M12 | 1130 | 60 | 3256 |
| ZM 180 | M 180 × 3 | 230 | 30 | 18 | 8 | 199 | 15 | M12 | 1300 | 60 | 3628 |
| ZM 190 | M 190 × 3 | 240 | 30 | 18 | 8 | 210 | 15 | M12 | 1470 | 60 | 3928 |
| ZM 200 | M 200 × 3 | 250 | 32 | 18 | 8 | 222 | 16 | M12 | 1600 | 60 | 4330 |
