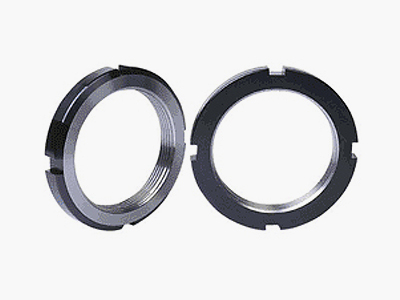

AN TYPE

작업자의 편의성과 제품의 내구성을 갖춘 명품 생산으로 환경친화적 제품을 생산

AN TYPE

Features
Material
DIN C45, JIS S45C, KS SM45C
Nut Grade
Precision class

도면파일 다운로드

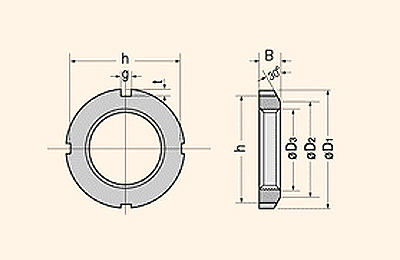

Dimensions(mm)
표를 좌,우로 드래그 해주세요.
PART NO THREAD & PITCH Dimension
d1 b2 h g t d3 B
AN 00 M 10 × 0.75 18 13.5 14 3 2 10.5 4
AN 01 M 12× 1 22 17 18 3 2 12.5 4
AN 02 M 15× 1 25 21 21 4 2 15.5 5
AN 03 M 17× 1 28 24 24 4 2 17.5 5
AN 04 M 20× 1 32 26 28 4 2 20.5 6
AN 05 M 25× 1.5 38 32 34 5 2 25.8 7
AN 06 M 30× 1.5 45 38 41 5 2 30.8 7
AN 07 M 35× 1.5 52 44 48 5 2 35.8 8
AN 08 M 40× 1.5 58 50 53 6 2.5 40.8 9
AN 09 M 45× 1.5 65 56 60 6 2.5 45.8 10
AN 10 M 50× 1.5 70 61 65 6 2.5 50.8 11
AN 11 M 55× 2 75 67 69 7 3 56 11
AN 12 M 60× 2 80 73 74 7 3 61 11
AN 13 M 65× 2 85 79 79 7 3 66 12
AN 14 M 70× 2 92 85 85 8 3.5 71 12
AN 15 M 75× 2 98 90 91 8 3.5 76 13
AN 16 M 80× 2 105 95 98 8 3.5 81 15
AN 17 M 85× 2 110 102 103 8 3.5 86 16
AN 18 M 90× 2 120 108 112 10 4 91 16
AN 19 M 95× 2 125 113 117 10 4 96 17
AN 20 M 100× 2 130 120 122 10 4 101 18
AN 21 M 105× 2 140 126 130 12 5 106 18
AN 22 M 110× 2 145 133 135 12 5 111 19
AN 23 M 115× 2 150 137 140 12 5 116 19
AN 24 M 120× 2 155 138 145 12 5 121 20
AN 25 M 125× 2 160 148 150 12 5 126 21
AN 26 M 130× 2 165 149 155 12 5 131 21
AN 27 M 135× 2 175 160 163 14 6 136 22
AN 28 M 140× 2 180 160 168 14 6 141 22
AN 29 M 145× 2 190 172 178 14 6 146 24
AN 30 M 150× 2 195 171 183 14 6 151 24
AN 31 M 155× 2 200 182 186 16 7 156.5 25
AN 32 M 160× 3 210 182 196 16 7 161.5 25
AN 33 M 165× 3 210 193 196 16 7 166.5 26
AN 34 M 170× 3 220 193 206 16 7 171.5 26
AN 36 M 180× 3 230 203 214 18 8 181.5 27
AN 38 M 190× 3 240 214 224 18 8 191.5 28
AN 40 M 200× 3 250 226 234 18 8 201.5 29
