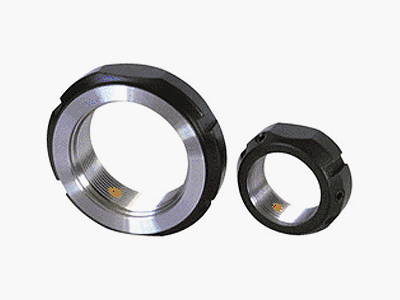

SLN TYPE

작업자의 편의성과 제품의 내구성을 갖춘 명품 생산으로 환경친화적 제품을 생산

SLN TYPE

Features
Material
DIN C45, JIS S45C, KS SM45C
Hardness
HRC 20~25
Nut Grade
Precision class
Squarness of Nut Face
⊥0.002~0.015
Advantages
Three locking pins located in equal intervals enable the nut to be assembled with the shaft at appropriate angle and adjust the deviation properly.
No need for a lock washer or fluting of shaft key.

도면파일 다운로드

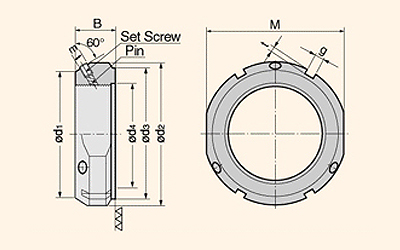

Dimensions(mm)
표를 좌,우로 드래그 해주세요.
PART NO THREAD & PITCH Dimension
Axial Load
(KN)
Weight
(g)
d1 d2 d3 d4 B g t M m
Torque
(Nm)
SLN 02 M 15 × 1 26 33 25 16 16 4 2.5 30 M5 4.5 60 75
SLN 03 M 17 × 1 29 37 30 18 18 5 2.5 34 M6 8 80 100
SLN 04 M 20 × 1 32 40 32 21 18 5 2.5 36 M6 8 90 110
SLN 05 M 25 × 1.5 36 44 36 26 20 5 2.5 41 M6 8 130 130
SLN 06 M 30 × 1.5 41 49 41 31 20 5 2.5 46 M6 8 160 160
SLN 07 M 35 × 1.5 46 54 46 36 22 5 2.5 50 M6 8 190 190
SLN 08 M 40 × 1.5 56 65 56 41 22 6 3 60 M6 8 210 300
SLN 09 M 45 × 1.5 61 70 61 47 22 6 3 65 M6 8 240 330
SLN 10 M 50 × 1.5 65 75 65 51 25 7 3 70 M6 8 300 400
SLN 11 M 55 × 2 74 85 75 57 25 7 3 80 M8 18 340 540
SLN 12 M 60× 2 78 90 79 62 26 8 4 85 M8 18 380 610
SLN 13 M 65 × 2 83 95 84 67 28 8 4 90 M8 18 460 710
SLN 14 M 70 × 2 88 100 89 72 28 8 4 95 M8 18 490 750
SLN 15 M 75 × 2 93 105 94 77 28 8 4 100 M8 18 520 800
SLN 16 M 80 × 2 98 110 96 82 32 8 4 100 M8 18 620 900
SLN 17 M 85 × 2 107 120 106 87 32 10 4 110 M10 35 650 1150
SLN 18 M 90 × 2 112 125 111 92 32 10 4 115 M10 35 680 1200
SLN 19 M 95 × 2 117 130 116 97 32 10 4 120 M10 35 710 1250
SLN 20 M 100 × 2 122 135 121 102 32 10 4 125 M10 35 740 1300
SLN 22 M 110 × 2 132 145 130 112 32 10 4 135 M10 35 800 1450
SLN 24 M 120 × 2 142 155 140 122 32 10 4 145 M10 35 860 1600
SLN 26 M 130 × 2 152 165 150 132 32 12 5 155 M10 35 920 1700
SLN28 M 140 × 2 162 175 160 142 32 14 6 165 M10 35 980 1800
SLN 30 M 150 × 2 172 185 170 152 32 14 6 175 M10 35 1040 1950
SLN 32 M 160 × 3 182 195 180 162 32 14 6 - M10 35 1100 2100
SLN 34 M 170 × 3 192 205 190 172 32 14 6 - M10 35 1160 2200
SLN 36 M 180 × 3 202 215 200 182 32 16 7 - M10 35 1220 2300
SLN 38 M 190 × 3 212 225 210 192 32 16 7 - M10 35 1280 2400
SLN 40 M 200 × 3 222 235 220 202 32 18 8 - M10 35 1340 2500
