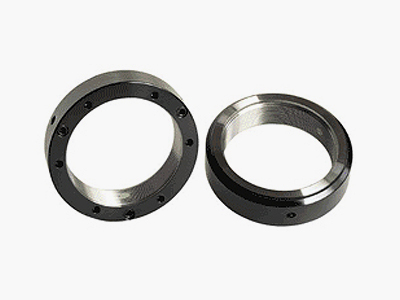

HB TYPE

작업자의 편의성과 제품의 내구성을 갖춘 명품 생산으로 환경친화적 제품을 생산

HB TYPE

Features
Material
DIN C45, JIS S45C, KS SM45C
Hardness
HRC 20~25
Nut Grade
Precision class
Squarness of Nut Face
⊥0.002~0.015
Advantages
Thanks to enhanced flatness and roughness of reference plane by lapping work, YHB type fits in shaft build-up which requires high fixing dedree.
Three locking pins located in equal intervals enable the nut to be assembled with the shaft at appropriate angle and adjust the deviation properly.
Keeps a good balance thanks to the equal interval fluting of lock pin and hook spanner.

도면파일 다운로드

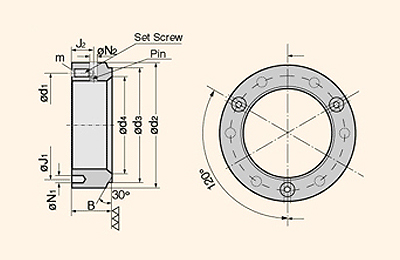

Dimensions(mm)
표를 좌,우로 드래그 해주세요.
PART NO THREAD & PITCH Dimension
Axial Load
(KN)
Set Screw
(Nm)
Weight
(g)
d1 b2 d3 d4 B g t m m m
HB 05 M 25 × 1.5 33.5 42 35 26 20 32.5 11 4.3 5 M6 130 8 120
HB 06 M 30 × 1.5 39 48 40 32 20 40.5 11 4.3 5 M6 160 8 150
HB 07 M 35 × 1.5 44 53 47 38 20 45.5 11 4.3 5 M6 190 8 180
HB 08 M 40 × 1.5 49 58 52 42 22 50.5 12 4.3 5 M6 210 8 210
HB 09 M 45 × 1.5 56.5 68 58 48 22 58 12 4.3 5 M6 240 8 300
HB 10 M 50 × 1.5 60 70 63 52 24 61.5 12 4.3 5 M6 300 8 310
HB 11 M 55 × 1.5 65 75 70 58 24 66.5 13 4.3 5 M6 340 8 350
HB 12 M 60 × 1.5 72 84 75 62 24 74.5 13 5.3 5 M6 380 8 450
HB 13 M 65 × 1.5 76 88 80 68 25 78.5 13 5.3 5 M6 460 8 480
HB 14 M 70 × 1.5 83 95 86 72 26 85 14 5.3 7.9 M10 490 18 570
HB 15 M 75 × 1.5 88 100 91 77 26 88 13 6.4 7.9 M10 520 18 610
HB 16 M 80 × 2 96 110 97 83 30 95 16 6.4 7.9 M10 620 18 910
HB 17 M 85 × 2 100 115 102 88 32 100 17 6.4 9.6 M12 650 35 1050
HB 18 M 90 × 2 105 120 110 93 32 108 17 6.4 9.6 M12 680 35 1100
HB 19 M 95 × 2 110 125 114 98 32 113 17 6.4 9.6 M12 710 35 1150
HB 20 M 100 × 2 115 130 120 103 32 118 17 6.4 9.6 M12 740 35 1200
HB 22 M 110 × 2 128 140 132 112 32 128 17 6.4 9.6 M12 800 35 1350
HB 24 M 120 × 2 138 155 142 122 32 140 17 6.4 9.6 M12 860 35 1700
HB 26 M 130 × 3 148 165 156 132 32 153 17 6.4 9.6 M12 920 35 1900
HB 28 M 140 × 3 160 180 166 142 32 165 17 6.4 9.6 M12 980 35 2250
HB 30 M 150 × 3 173 195 180 152 32 175 17 6.4 9.6 M12 1040 35 2450
HB 32 M 160 × 3 182 205 190 162 32 185 17 8.4 9.6 M12 1100 35 2900
HB 34 M 170 × 3 192 215 205 172 32 195 17 8.4 9.6 M12 1160 35 3150
HB 36 M 180 × 3 205 230 215 182 32 210 17 8.4 9.6 M12 1220 35 3650
HB 38 M 190 × 3 215 240 225 192 32 224 17 8.4 9.6 M12 1280 35 3850
HB 40 M 200 × 3 223 245 237 202 32 229 17 8.4 9.6 M12 1340 35 3700
