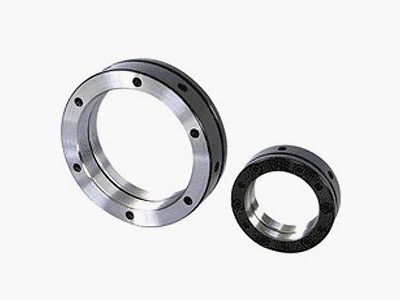

YAN TYPE

작업자의 편의성과 제품의 내구성을 갖춘 명품 생산으로 환경친화적 제품을 생산

YAN TYPE

Features
Material
DIN C45, JIS S45C, KS SM45C
Hardness
HRC 20~25
Nut Grade
Precision class
Squarness of Nut Face
⊥0.002~0.015
Advantages
Preload and tension can be adjusted.
Tolerative with vibration.(shake, oscillation)
Locking washers, slots in the shaft are not needed.

도면파일 다운로드

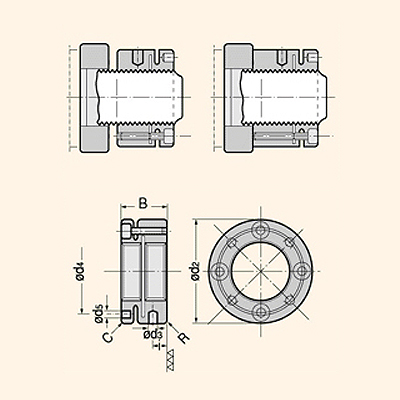

Dimensions(mm)
표를 좌,우로 드래그 해주세요.
PART NO Dimension HOLES TIGHT BOLT
Release
Torgue
Allowble
Axal Load
Weight
(g)
d2 d3 d4 d5 B i Thread
& Length		 bolts torque
YAN 16 × 1.5 34 4 24.5 4.3 18 4.5 4 M4 × 12 4 0.29 340 22 80
YAN 18 × 1.5 36 4 26.5 4.3 18 4.5 4 M4 × 12 4 0.29 370 24 87
YAN 20 × 1.5 40 4 30.5 4.3 18 4.5 4 M4 × 12 4 0.29 400 27 107
YAN 22 × 1.5 40 4 30.5 4.3 18 4.5 4 M4 × 12 4 0.29 420 30 100
YAN 24 × 1.5 42 4 32.5 4.3 18 4.5 4 M4 × 12 4 0.29 440 33 107
YAN 25× 1.5 45 5 36.5 4.3 20 6.0 4 M4 × 12 4 0.29 450 45 137
YAN 28 × 1.5 46 5 38.5 4.3 20 6.0 4 M4 × 12 4 0.29 480 50 136
YAN 30 × 1.5 48 5 40.5 4.3 20 6.0 4 M4 × 12 4 0.29 500 55 141
YAN 32 × 1.5 50 5 42.5 4.3 22 7 4 M4 × 16 4 0.29 520 61 163
YAN 35 × 1.5 53 5 45.5 4.3 22 7 4 M4 × 16 4 0.29 550 62 175
YAN 38 × 1.5 58 5 48.5 4.3 22 7 4 M4 × 16 4 0.29 580 72 212
YAN 40 × 1.5 58 5 50.5 4.3 22 7 4 M4 × 16 4 0.29 600 63 195
YAN 42 × 1.5 60 5 52.5 4.3 22 7 4 M4 × 16 4 0.29 620 63 204
YAN 45 × 1.5 68 6 58 4.3 22 6.0 6 M4 × 16 6 0.29 1070 80 288
YAN 48 × 1.5 68 6 59.5 4.3 25 9 6 M4 × 18 6 0.29 1180 90 294
YAN 50 × 1.5 70 6 61.5 4.3 25 9 6 M4 × 18 6 0.29 1250 90 303
YAN 52 × 1.5 72 6 63.5 4.3 25 9 6 M4 × 18 6 0.29 1300 90 314
YAN 55 × 1.5 75 6 66.5 4.3 25 9 6 M4 × 18 6 0.29 1410 90 327
YAN 58 × 1.5 82 6 72.5 5.3 26 9 6 M5 × 18 6 0.6 2100 158 446
YAN 60 × 1.5 84 6 74.5 5.3 26 9 6 M5 × 18 6 0.6 2200 159 479
YAN 62 × 1.5 86 6 76.5 5.3 28 10.5 6 M5 × 20 6 0.6 2310 180 505
YAN 65 × 1.5 88 6 78.5 5.3 28 10.5 6 M5 × 20 6 0.6 2470 170 500
YAN 68 × 1.5 95 8 83 5.3 28 9.5 6 M5 × 20 6 0.6 2620 215 625
YAN 70 × 1.5 95 8 85 5.3 28 9.5 6 M5 × 20 6 0.6 2730 200 536
YAN 72 × 1.5 98 8 86 6.4 28 8.5 6 M6 × 20 6 1.0 3640 158 626
YAN 75 × 1.5 100 8 88 6.4 28 8.5 6 M6 × 20 6 1.0 3750 200 623
YAN 80 × 2.0 110 8 95 6.4 32 11 6 M6 × 22 6 1.0 3900 169 890
YAN 85 × 2.0 115 8 100 6.4 32 11 6 M6 × 22 6 1.0 4000 167 963
YAN 90 × 2.0 120 8 108 6.4 32 11 6 M6 × 22 6 1.0 4200 255 1020
YAN 95 × 2.0 125 8 113 6.4 32 11 6 M6 × 22 6 1.0 4350 262 1050
YAN 100 × 2.0 130 8 118 6.4 32 11 6 M6 × 22 6 1.0 4500 268 1100
YAN 105 × 2.0 135 8 123 6.4 32 11 6 M6 × 22 6 1.0 4650 270 1150
YAN 110 × 2.0 140 8 128 6.4 32 11 6 M6 × 22 6 1.0 4800 280 1210
YAN 115 × 2.0 145 8 133 6.4 36 13 6 M6 × 25 6 1.0 4950 325 1430
YAN 120 × 2.0 155 8 140 6.4 36 13 6 M6 × 25 6 1.0 5100 403 1740
YAN 125 × 2.0 160 8 148 6.4 36 13 6 M6 × 25 6 1.0 5250 410 1820
YAN 130 × 3.0 165 8 153 6.4 36 13 6 M6 × 25 6 1.0 5450 400 1940
YAN 140 × 3.0 180 10 165 6.4 36 12 8 M6 × 25 8 1.0 5700 472 2335
YAN 150 × 3.0 190 10 175 6.4 36 12 8 M6 × 25 8 1.0 6000 485 2480
YAN 160 × 3.0 205 10 185 8.4 40 14 8 M8 × 30 8 2.5 6300 550 3380
YAN 170 × 3.0 215 10 195 8.4 40 14 8 M8 × 30 8 2.5 6650 555 3580
YAN 180 × 3.0 230 10 210 8.4 40 14 8 M8 × 30 8 2.5 7000 640 4110
YAN 190 × 3.0 240 10 224 8.4 40 14 8 M8 × 30 8 2.5 7300 650 4330
YAN 200 × 3.0 245 10 229 8.4 40 14 8 M8 × 30 8 2.5 7600 570 4410
