SWLN TYPE

작업자의 편의성과 제품의 내구성을 갖춘 명품 생산으로 환경친화적 제품을 생산

SWLN TYPE

Features
Material
DIN C45, JIS S45C, KS SM45C
Hardness
HRC 20~25
Nut Grade
Precision class
Squarness of Nut Face
⊥0.002~0.015
Advantages
Be able to adjust deviation by exactly erecting a nut with locking pins located at three equal intervals.
No need for a lock washer or fluting of shaft key.

도면파일 다운로드

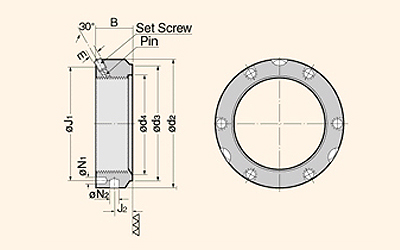

Dimensions(mm)
표를 좌,우로 드래그 해주세요.
PART NO THREAD & PITCH Dimension
Axial Load
(KN)
Weight
(g)
d2 d3 d4 B j1 j2 N1 N2 m
Torque
(Nm)
SWLN 04 M 20 × 1.0 38 30 21 18 29 10 4.3 4 M6 8 110 100
SWLN 05 M 25 × 1.5 42 35 26 20 32.5 11 4.3 4 M6 8 130 120
SWLN 06 M 30 × 1.5 48 40 31 20 40.5 11 4.3 5 M6 8 160 150
SWLN 07 M 35 × 1.5 53 47 36 20 45.5 11 4.3 5 M6 8 190 180
SWLN 08 M 40 × 1.5 58 52 41 22 50.5 12 4.3 5 M6 8 210 210
SWLN 09 M 45 × 1.5 68 58 46 22 58 12 4.3 6 M6 8 240 300
SWLN 10 M 50 × 1.5 70 63 51 24 61.5 13 4.3 6 M6 8 300 310
SWLN 11 M 55 × 1.5 75 70 57 24 66.5 13 4.3 6 M6 8 340 350
SWLN 12 M 60× 1.5 84 75 62 24 74.5 13 5.3 6 M6 8 380 450
SWLN 13 M 65 × 1.5 88 80 67 25 78.5 13 5.3 6 M6 8 460 480
SWLN 14 M 70 × 1.5 95 86 72 26 85 14 5.3 8 M8 18 490 570
SWLN 15 M 75 × 1.5 100 91 77 26 88 13 6.4 8 M8 18 520 610
SWLN 16 M 80 × 2 110 97 82 30 95 16 6.4 8 M8 18 620 910
SWLN 17 M 85 × 2 115 102 87 32 100 17 6.4 8 M10 35 650 1050
SWLN 18 M 90 × 2 120 110 92 32 108 17 6.4 8 M10 35 680 1100
SWLN 19 M 95 × 2 125 114 97 32 113 17 6.4 8 M10 35 710 1150
SWLN 20 M 100 × 2 130 120 102 32 118 17 6.4 8 M10 35 740 1200
SWLN 22 M 110 × 2 140 132 112 32 128 17 6.4 8 M10 35 800 1350
SWLN 24 M 120 × 2 155 142 122 32 140 17 6.4 8 M10 35 860 1700
SWLN 26 M 130 ×3 165 156 132 32 153 17 6.4 8 M10 35 920 1900
SWLN28 M 140 × 3 180 166 142 32 165 17 6.4 10 M10 35 980 2250
SWLN 30 M 150 × 3 190 180 152 32 175 17 6.4 10 M10 35 1040 2450
SWLN 32 M 160 × 3 205 190 162 32 185 17 8.4 10 M10 35 1100 2900
SWLN 34 M 170 × 3 215 205 172 32 195 17 8.4 10 M10 35 1160 3150
SWLN 36 M 180 × 3 230 215 182 32 210 17 8.4 10 M10 35 1220 3650
SWLN 38 M 190 × 3 240 225 192 32 224 17 8.4 10 M10 35 1280 3850
SWLN 40 M 200 × 3 245 237 202 32 229 17 8.4 10 M10 35 1340 3700
