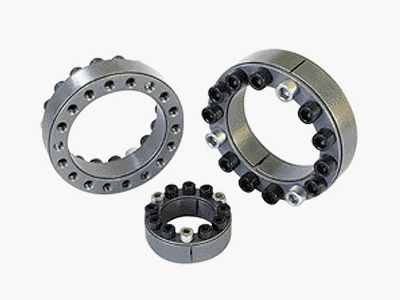

SWLE 200 TYPE

작업자의 편의성과 제품의 내구성을 갖춘 명품 생산으로 환경친화적 제품을 생산

SWLE 200 TYPE

Advantages
SWLE200 can be used in connecting the shaft and boss when it requires a high trans-missible torque.
Easy assembling and no need for other parts.
No axial movement during assembly.
Required shaft : Ø20~Ø240mm
Usage
Pulley, gear, flywheel, cam, lever etc.
Features
Material
DIN C45, JIS S45C, KS SM45C
Hardness
HRC 20~25
Surface treatment
Barrel grinding.

도면파일 다운로드

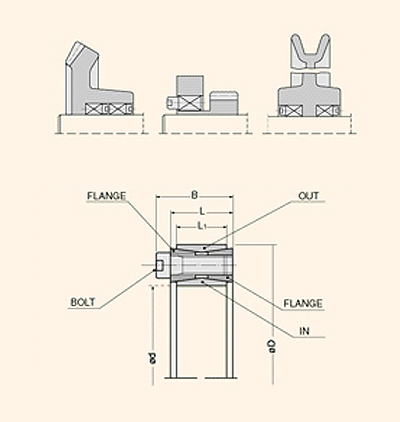

Dimensions(mm)
표를 좌,우로 드래그 해주세요.
SWEL200
d X D
 Dimension Transmissioniable Surface Pressure Bolts Weight
(g)
L L1 B Torque
Mt(kgf-m)		 Axial Load
Pax(kgf) 		Shaft
kgf/mm2 		Bass
kgf/mm2 		Holes Thread Dia Torque
(kgf-m)
20×47 20 17 26 27 2760 27 11 8 M6 1.4 208
22×47 20 17 26 30 2760 24.5 11.5 8 M6 1.4 198
24×50 20 17 26 37 3110 25 12 9 M6 1.4 216
25×50 20 17 26 39 3110 24 12 9 M6 1.4 210
28×55 20 17 26 48 3450 24 12 10 M6 1.4 256
30×55 20 17 26 52 3460 22.5 12.5 10 M6 1.4 244
32×60 20 17 26 66 4150 25 13.5 12 M6 1.4 294
35×60 20 17 26 72 4150 23 13.5 12 M6 1.4 276
38×65 20 17 26 91 4840 25 14.5 14 M6 1.4 320
40×65 20 17 26 96 4840 23.5 14.5 14 M6 1.4 308
42×75 24 20 32 158 7520 30 17 12 M8 3.4 556
45×75 24 20 32 170 7520 28 17 12 M8 3.4 522
48×80 24 20 32 181 7520 26 15.5 12 M8 3.4 578
50×80 24 20 32 190 7520 25 15.5 12 M8 3.4 564
55×85 24 20 32 242 8800 26.5 17 14 M8 3.4 610
60×90 24 20 32 264 8800 24.5 16 14 M8 3.4 644
65×95 24 20 32 327 10000 26 17.5 16 M8 3.4 690
70×110 28 24 38 480 13600 27 17 14 M10 6.6 1214
75×115 28 24 38 510 13600 25 16.5 14 M10 6.6 1280
80×120 28 24 38 540 13600 24 16 14 M10 6.6 1346
85×125 28 24 38 660 15600 25.5 17.5 16 M10 6.6 1424
90×130 28 24 38 700 15600 24 16.5 16 M10 6.6 1472
95×135 28 24 38 830 17600 25.5 18 18 M10 6.6 1546
100×145 33 26 45 990 19800 25.5 17.5 14 M12 11.5 2132
110×155 33 26 45 1090 19800 23 16.5 14 M12 11.5 2306
120×165 33 26 45 1360 22700 24 17.5 16 M12 11.5 2400
130×180 38 34 50 1840 28400 21.5 15.5 20 M12 11.5 3500
140×190 38 34 50 2180 31200 22 16 22 M12 11.5 3848
150×200 38 34 50 2550 34000 22 16.5 24 M12 11.5 4100
160×210 38 34 50 2950 36900 22.5 17 26 M12 11.5 4400
170×225 44 38 58 3560 41900 21.5 16.5 22 M14 18.0 5800
180×235 44 38 58 4110 45700 22 17 24 M14 18.0 6100
190×250 52 46 66 5060 53300 20 15.5 28 M14 18.0 8300
200×260 52 46 66 5710 57100 20.5 16 30 M14 18.0 8700
220×285 56 50 72 7410 67400 20.5 15.5 26 M16 28.0 11300
240×305 56 50 72 9330 77800 21.5 17 30 M16 28.0 12200
