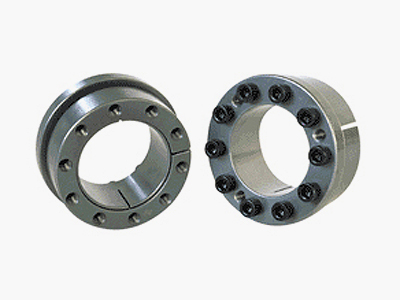

SWLE 200B TYPE

작업자의 편의성과 제품의 내구성을 갖춘 명품 생산으로 환경친화적 제품을 생산

SWLE 200B TYPE

Advantages
SWLE200-B applies to high transmissible torque and precise positioning.
No axial movement during assembly.
Required shaft : Ø8~Ø100mm
Usage
Pulley, gear, flywheel, cam, lever etc.
Features
Material
DIN C45, JIS S45C, KS SM45C
Hardness
HRC 20~25
Surface treatment
Barrel grinding.

도면파일 다운로드

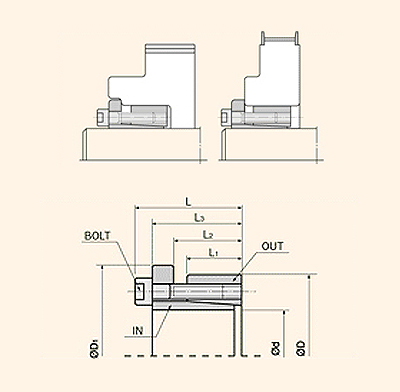

Dimensions(mm)
표를 좌,우로 드래그 해주세요.
SWEL200B
d X D
 Dimension Champ Bolts Transmissioniable Surface Pressure Weight
(g)
L L3 L2 L1 D D1 Holes Thread Torque
Torque
Mt(kgf-m)
Axial Load
Pax(kgf) 		Shaft
kgf/mm2 		Bass
kgf/mm2
8×22 21 17 13 10 22 25 3 M4×15 0.39 1.8 470 27.9 7.1 45
9×23 21 17 13 10 23 26 3 M4×15 0.39 2.1 470 24.8 6.8 50
10×24 21 17 13 10 24 27 4 M4×15 0.39 3.0 620
30.0
 8.7 53
11×25 21 17 13 10 25 28 4 M4×15 0.39 3.4 620 27.0 8.4 56
12×26 21 17 13 10 26 29 5 M4×15 0.39 4.7 780 31.0 10.0 60
13×27 21 17 13 10 27 30 5 M4×15 0.39 5.0 750 28.6 9.7 63
14×31 26 21 16 12.5 31 34 4 M5×15 0.8 7.0 1000 26.6 8.7 100
15×32 26 21 16 12.5 32 35 4 M5×15 0.8 7.5 1000 24.8 8.4 105
16×33 26 21 16 12.5 33 36 4 M5×15 0.8 8.0 1000 23.2 8.1 110
17×34 26 21 16 12.5 34 37 5 M5×15 0.8 10.5 1250 27.3 9.9 115
18×35 26 21 16 12.5 35 38 5 M5×15 0.8 11.0 1250 25.8 9.6 120
19×47 38 32 24 20 47 53 6 M6×22 1.6 29 3000 29.0 9.4 355
20×47 38 32 24 20 47 53 6 M6×22 1.6 30 3000 27.5 9.4 350
22×47 38 32 24 20 47 53 6 M6×22 1.6 33 3000 25.0 9.4 335
24×50 38 32 24 20 50 56 7 M6×22 1.6 42 3450 26.7 10.3 380
25×50 38 32 24 20 50 56 7 M6×22 1.6 44 3450 25.7 10.3 370
28×55 38 32 24 20 55 62 7 M6×22 1.6 48 3450 22.9 9.4 440
30×55 38 32 24 20 55 62 7 M6×22 1.6 52 3450 21.4 9.4 425
32×60 38 32 24 20 60 68 9 M6×22 1.6 71 4450 25.8 11.0 510
35×60 38 32 24 20 60 68 9 M6×22 1.6 78 4450 23.6 11.0 475
38×65 38 32 24 20 65 73 9 M6×22 1.6 85 4450 21.7 10.0 550
40×65 38 32 24 20 65 73 9 M6×22 1.6 90 4450 20.6 10.2 520
42×75 48 40 29 24 75 83 9 M8×30 3.9 173 8200 30.5 13.5 955
45×75 48 40 29 24 75 83 9 M8×30 3.9 185 8200 28.4 13.5 900
48×80 48 40 29 24 80 88 9 M8×30 3.9 198 8200 26.7 12.7 1010
50×80 48 40 29 24 80 88 9 M8×30 3.9 206 8200 25.6 12.7 950
55×85 48 40 29 24 85 94 10 M8×30 3.9 252 9100 25.8 13.2 1060
60×90 48 40 29 24 90 99 10 M8×30 3.9 275 9100 23.7 12.5 1130
65×95 48 40 29 24 95 104 12 M8×30 3.9 357 11000 26.3 14.2 1220
70×110 62 52 37 30 110 119 10 M10×40 7.5 504 14400 26.4 12.9 2280
75×115 62 52 37 30 115 124 10 M10×40 7.5 540 14400 24.6 12.3 2400
80×120 62 52 37 30 120 129 10 M10×40 7.5 575 14400 23 11.8 2520
85×125 62 52 37 30 125 134 12 M10×40 7.5 734 17000 26 13.6 2660
90×130 62 52 37 30 130 139 12 M10×40 7.5 775 17000 24.6 13.0 2780
95×135 62 52 37 30 135 144 14 M10×40 7.5 955 20000 27.2 14.7 2980
100×145 74 64 46 39 145 154 15 M10×40 7.5 1080 21000 19.9 11.3 4300
