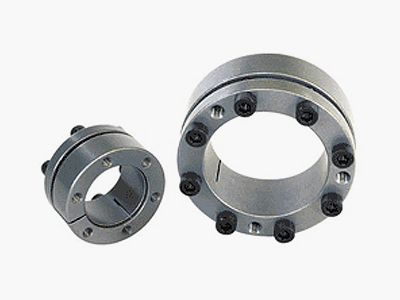

SWLE 200A TYPE

작업자의 편의성과 제품의 내구성을 갖춘 명품 생산으로 환경친화적 제품을 생산

SWLE 200A TYPE

Advantages
SWLE200-A applies to high transmissible torque and precise positioning.
No axial movement during assembly.
Required shaft : Ø19~Ø100mm
Usage
Pulley, gear, flywheel, cam, lever etc.
Features
Material
DIN C45, JIS S45C, KS SM45C
Hardness
HRC 20~25
Surface treatment
Barrel grinding.

도면파일 다운로드

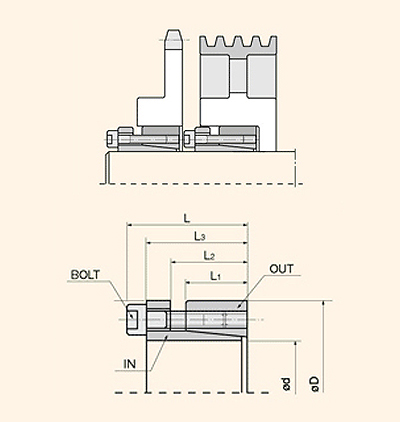

Dimensions(mm)
표를 좌,우로 드래그 해주세요.
SWEL200A
d X D
 Dimension Champ Bolts Transmissioniable Surface Pressure Weight
(g)
L L3 L2 L1 D Holes Thread Torque
Torque
Mt(kgf-m)
Axial Load
Pax(kgf) 		Shaft
kgf/mm2 		Bass
kgf/mm2
19×47 38 32 24 20 47 6 M6×22 1.6 30 3100 30.4 9.8 325
20×47 38 32 24 20 47 6 M6×22 1.6 31 3100 28.8 9.8 315
22×47 38 32 24 20 47 6 M6×22 1.6 34 3100 26.2 9.8 305
24×50 38 32 24 20 50 7 M6×22 1.6 47 3900 30.0 11.5 345
25×50 38 32 24 20 50 7 M6×22 1.6 49 3900 28.8 11.5 335
28×55 38 32 24 20 55 7 M6×22 1.6 55 3900 25.7 10.5 395
30×55 38 32 24 20 55 7 M6×22 1.6 59 3900 24.0 10.5 375
32×60 38 32 24 20 60 9 M6×22 1.6 75 4650 27.0 11.5 455
35×60 38 32 24 20 60 9 M6×22 1.6 82 4650 24.7 11.5 420
38×65 38 32 24 20 65 9 M6×22 1.6 89 4650 22.7 10.6 490
40×65 38 32 24 20 65 9 M6×22 1.6 93 4650 21.6 10.6 465
42×75 48 40 29 24 75 9 M8×30 3.9 181 8600 31.9 14.2 855
45×75 48 40 29 24 75 9 M8×30 3.9 194 8600 29.8 14.2 795
48×80 48 40 29 24 80 9 M8×30 3.9 207 8600 27.9 13.3 905
50×80 48 40 29 24 80 9 M8×30 3.9 216 8600 26.8 13.3 860
55×85 48 40 29 24 85 10 M8×30 3.9 277 10000 28.4 14.6 935
60×90 48 40 29 24 90 10 M8×30 3.9 302 10000 26.0 13.8 1000
65×95 48 40 29 24 95 12 M8×30 3.9 374 11500 27.5 14.9 1070
70×110 62 52 37 30 110 10 M10×40 7.5 554 15800 29.0 14.2 2060
75×115 62 52 37 30 115 10 M10×40 7.5 594 15800 27.0 13.5 2170
80×120 62 52 37 30 120 10 M10×40 7.5 633 15800 25.4 13.0 2280
85×125 62 52 37 30 125 12 M10×40 7.5 769 18000 27.3 14.3 2400
90×130 62 52 37 30 130 12 M10×40 7.5 814 18000 25.8 13.7 2510
95×135 62 52 37 30 135 14 M10×40 7.5 1074 25000 30.5 16.5 2650
100×145 74 64 46 39 145 15 M10×40 7.5 1130 25000 20.9 11.8 3950
